The WireView Pro II, which was already presented at Computex 2025, is now available for pre-order exclusively in the Thermal Grizzly shop and offers new features for monitoring and data logging as well as new protection functions for graphics cards with a 12VHPWR power connector.


The WireView Pro II is a device for measuring the power consumption of graphics cards and introduces precise per-pin monitoring of the 12V-2x6 connector for the first time providing valuable insights into load distribution on modern high-end graphics cards along with advanced safety features.

A Cnc-machined aluminum housing with semi-passive cooling and a high-contrast Tft-ips display ensures reliable visualization of all critical measurements.

Automatic data logging and an extended 2-year warranty for the Gpu connector and graphics card provide additional peace of mind in demanding setups.


The WireView Pro II has been specifically developed for the demanding use of modern high-end graphics cards with the 12V-2x6 connector and represents the most advanced iteration of the WireView Pro. Current is not only measured as a total value, but also per each individual pin and wire of the 12V-2x6 connector. This enables immediate identification of potential contact issues between the cable and graphics card.

The WireView Pro II has been purpose-built to enable precise monitoring of the 12V-2x6 connector, allowing early detection of load distribution problems and helping to prevent possible damage to the graphics card and the 12V-2x6 connector.

The WireView Pro II is available for Eur 119.90 incl. Vat or Usd 119.90 excl. Vat and is expected to be available from mid December, 2025.

WireView Pro II features overview:

• Enhanced version of the WireView Pro with additional functionality


• Per-pin current monitoring for highest precision


• Extended warranty covering the Gpu connector for 2 years


• Automatic data logging for failure case analysis

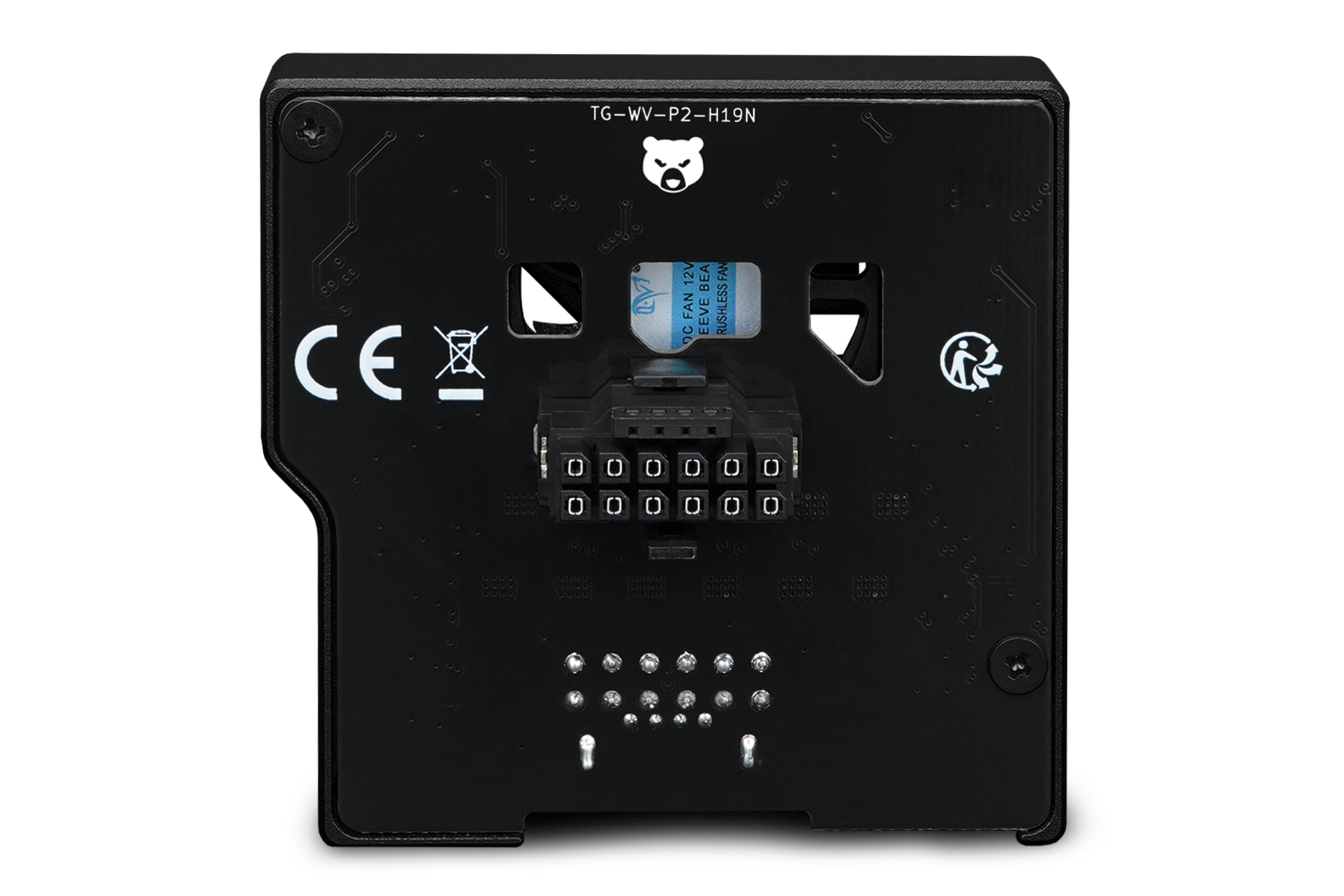

• Custom-designed 12V-2x6 connector for optimal compatibility


• Normal or reversed plug orientation options


• Plug-and-play usability without the need for custom configuration


• 90-degree cable routing for optimized cable management

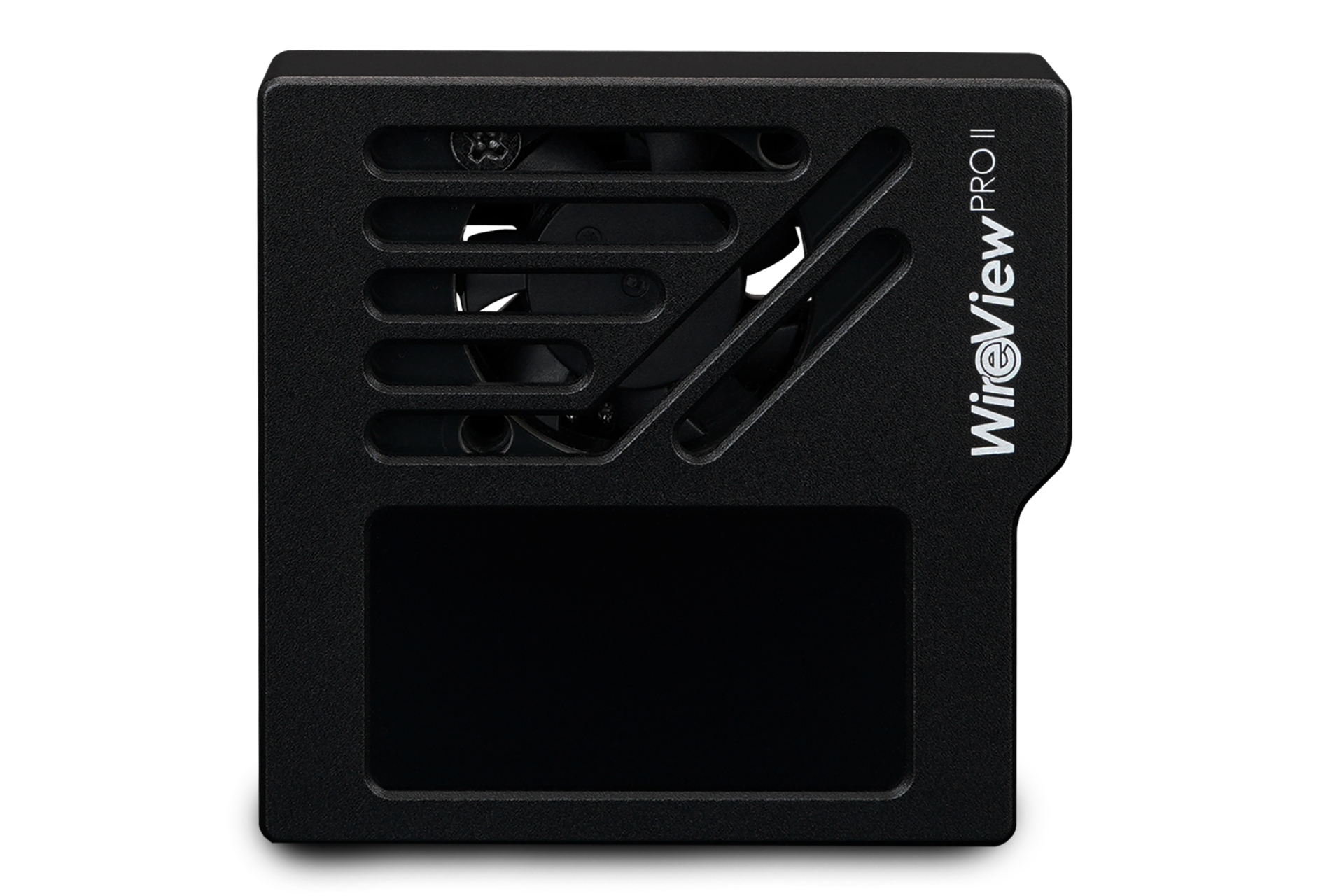

• Cnc-machined aluminum housing with active cooling functionality


• Semi-passive 30-mm fan controlled by temperature and power load


• Temperature monitoring at the input and output of the 12V-2x6 connector


• Two external 10k Ntc temperature sensors included


• USB-C for user-performed firmware updates


• USB-C to USB-2.0 adapter cable for internal PC integration


• 320x170-pixel Tft-ips color display


• Main View: per-pin monitoring, power consumption, connector detection, fan %, output temperature


• Simple View: total power, highest-current pin, voltage, hottest sensor


• Current Monitor: per-pin current in amps with visual limit display


• Voltage Monitor: per-pin voltage and average value


• Power Monitor: per-pin and total power


• Temperature Monitor: display of all 4 temperature sensors


• Audible and visual warnings if limits are exceeded


• Extensive configuration options for the display


• Global settings for alarms, cycle mode, design, and fan control

Availability and Pricing

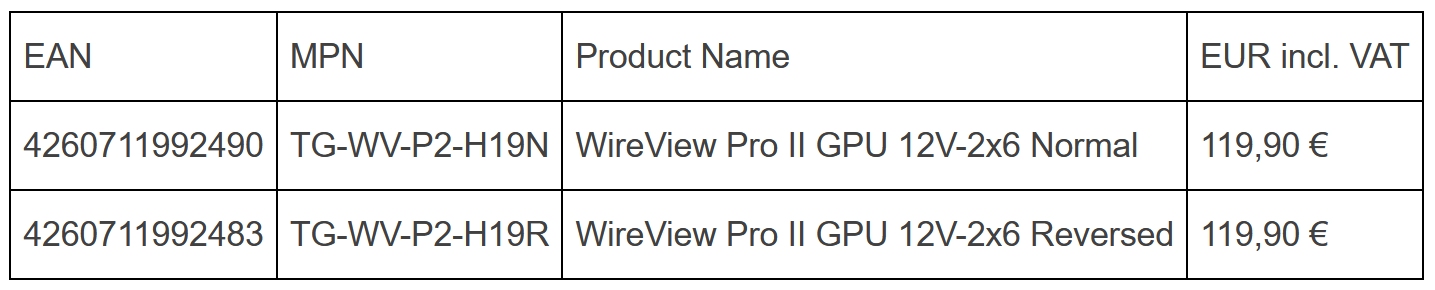

Thermal Grizzly WireView Pro II Gpu monitoring tool is now available for pre-order exclusively from the Thermal Grizzly Online Shop. In the table below, you can see the manufacturer's suggested retail prices (Msrp) including Vat.
