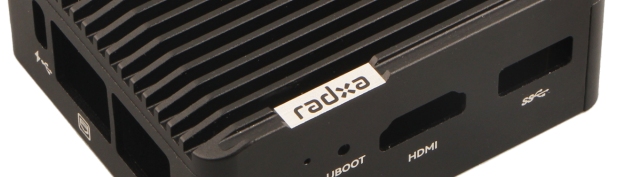

Radxa Metal Case 7264 is an ultra-compact case designed for single-board computers (SBCs).

Combining rugged durability with efficient thermal performance, it delivers an exceptionally compact and lightweight design - ideal for industrial-grade cooling and edge computing in space-constrained scenarios.


Currently, it is perfectly compatible with the Cubie A5E, empowering SBCs to achieve big capabilities in tiny spaces!

Features

• Perfect Fit - Precise cutouts and structural design ensure perfect compatibility with all interfaces and expansion capabilities.


• Extremely Compact Design - Case dimensions approximately 72.6 mm*63.4 mm*30 mm, lightweight and portable, about the size of a palm, perfect for deployment in tight spaces.


• Industrial-grade Thermal Solution - All-metal body with 3D cooling fins, operates with zero fan noise.


• PoE-ready (module not included) - Supports 802.3af/at standards, providing both power and network connectivity through a single cable.


• Triple Wireless Expansion - Features 3 x SMA interfaces, supporting WiFi / Bluetooth / Cellular module expansion (additional expansion board required).

Package list

• 1x Heatsink
• RAD-DOC-0160 Radxa Computer (Shenzhen) Co., Ltd. 3
• Radxa Metal Case 7264
• 1x Right Side Cover
• 1x Left Side Cover
• 1x Bottom Cover
• 1x Thermal Pad
• 1x Rod Antenna Set
• 3x Antenna Hole Rubber Plugs
• 4x KM2*4*3.5 mm Screws
• 4x M2*16.6 mm Standoffs
