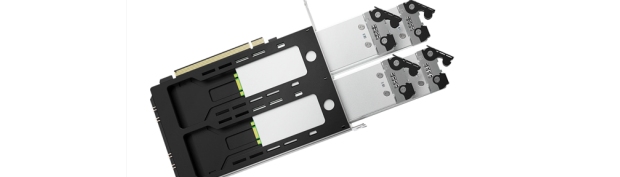

The CP158 is a concept-stage removable storage solution designed for enterprise and industrial applications requiring high-capacity, high-speed data access within a compact PCIe add-in card format. Supporting four M.2 NVMe SSDs up to 22110 length, the CP158 installs into a dual-slot PCIe space while requiring only a single PCIe 5.0 x16 interface, perfectly aligning with modern motherboard layouts that reserve space next to the main x16 GPU slot.


To facilitate tool-less maintenance and flexible system upgrades, the CP158 features four individual removable trays, allowing users to install and replace drives without opening the chassis. This rear-access design significantly reduces system downtime and simplifies SSD management in server, workstation, and IPC environments.


The CP158 provides support for PCIe 5.0 x4 transfer speeds—up to 128Gbps per drive—delivering uncompromised performance for data-intensive workloads such as real-time analytics, AI training, and high-resolution media processing. An integrated PCIe 6-pin power connector ensures stable power delivery to all drives while reducing cable clutter and airflow obstruction within dense system builds.


Constructed with a rigid metal chassis and reinforced tray alignment structure, the CP158 ensures mechanical stability during frequent drive insertions and removals. The vented bracket and optimized airflow path help maintain optimal operating temperatures even under full load, aligning with enterprise thermal expectations.

Key Features

• Supports 4 x M.2 PCIe NVMe SSDs (2230/2242/2260/2280/22110)


• Uses 1x PCIe 5.0 x16 slot (PCIe Bifurcation x4, x4, x4, x4 for PCIe 16x is required to access four drives)


• Occupies 2 PCIe slot spaces but requires only 1 x PCIe x16 interface


• Removable tray design enables tool-less drive access without opening the chassis


• PCIe interface provides power and data transfer to reduce cable clutter


• PCIe 5.0 x4 interface per drive for up to 128Gbps high-speed data transfer


• The included thermal pad conducts heat from the SSD to the aluminum heatsink lid


• PCIe 6-pin power input for clean power delivery and cable management


• Ideal for server, workstation, embedded system, and IPC environments
